Nomina
Shackle
Size(in.) |
Working
Load
Limit(tons) |
Weight Each(Ibs.) |
|
Nominal
Shackle
Size(in.) |
Working
Load
Limit(tons) |
2130
Weight
Each(Ibs.) |
2150
Weight
Each(Ibs.) |

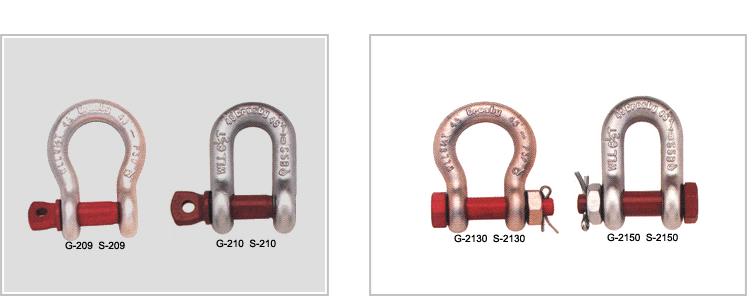

| G-209S-209 |
G-210S-210 |
| 3/16 |
1/3 |
.05 |
- |
3/16 |
1/3 |
.06 |
- |
| 1/4 |
1/2 |
.12 |
.11 |
1/4 |
1/2 |
.17 |
.13 |
| 5/16 |
3/4 |
.19 |
.17 |
5/16 |
3/4 |
.22 |
.23 |
| 3/8 |
1 |
.31 |
.24 |
3/8 |
1 |
.33 |
.33 |
| 7/16 |
11/2 |
.38 |
.40 |
7/16 |
11/2 |
.49 |
.49 |
| 7/16 |
11/2 |
.38 |
.40 |
1/2 |
2 |
.79 |
.75 |
| 5/8 |
31/4 |
1.38 |
1.21 |
5/8 |
31/4 |
1.68 |
1.47 |
| 3/4 |
43/4 |
2.25 |
2.25 |
3/4 |
43/4 |
2.72 |
2.52 |
| 7/8 |
61/2 |
3.38 |
3.16 |
7/8 |
61/2 |
3.95 |
3.85 |
| 1 |
81/2 |
5.32 |
4.75 |
1 |
81/2 |
6.12 |
5.55 |
| 11/8 |
91/2 |
6.81 |
6.75 |
11/8 |
91/2 |
8.27 |
7.60 |
| 11/4 |
12 |
9.50 |
9.06 |
11/4 |
12 |
11.71 |
10.81 |
| 13/8 |
131/2 |
13.25 |
11.63 |
13/8 |
131/2 |
15.83 |
13.75 |
| 11/2 |
17 |
17.20 |
15.95 |
11/2 |
17 |
20.80 |
18.50 |
| 13/4 |
25 |
30.38 |
26.75 |
13/4 |
25 |
33.91 |
31.40 |
| 2 |
35 |
45.00 |
42.31 |
2 |
35 |
52.25 |
46.75 |
| 21/2 |
55 |
85.75 |
71.75 |
21/2 |
55 |
98.25 |
85.00 |
| |
|
|
|
3 |
85 |
154.00 |
124.25 |
| |
|
|
|
31/2 |
120 |
265.00 |
- |
| |
|
|
|
4 |
150 |
338.00 |
- |
|
|
 |
|

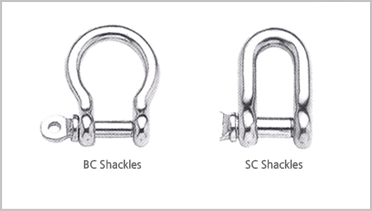

BC Shackles
Size |
|
SC Shackles
Size |
| 3/16" |
3/16" |
| 1/4" |
1/4" |
| 5/16" |
5/16" |
| 3/8" |
3/8" |
| 1/2" |
1/2" |
| 5/8" |
5/8" |
| 3/4" |
3/4" |
| 7/8" |
7/8" |
| 1" |
1" |
|
|
|
|
|
